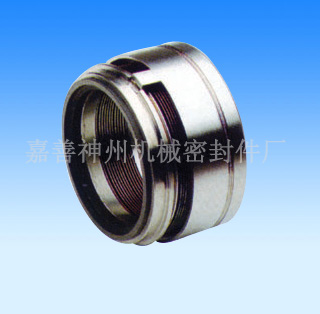

Products Name:Model MFL65 mechanical seal

Products Details:Single end / balance / arbitrary direction / metal bellows; MFL65 series used in high temperature and high speed conditions, torque transmission does not affect the bellows, no other elastic elements of secondary seal, non compensation ring special design.

Operating parameters:
Specifications:19-100 mm；Stress:≤2.5Mpa；(Double layer wave plate≤5.0Mpa)?。籘emperature:-20℃～400℃??；Line speed: 15m/s; axial movement:±1.0mm

Material combination:
Sealing face: graphite, silicon carbide, tungsten carbide, auxiliary rib seal: NBR, fluorine rubber, ethylene propylene rubber, flexible graphite, PTFE; metal components: stainless steel, alloy steel
